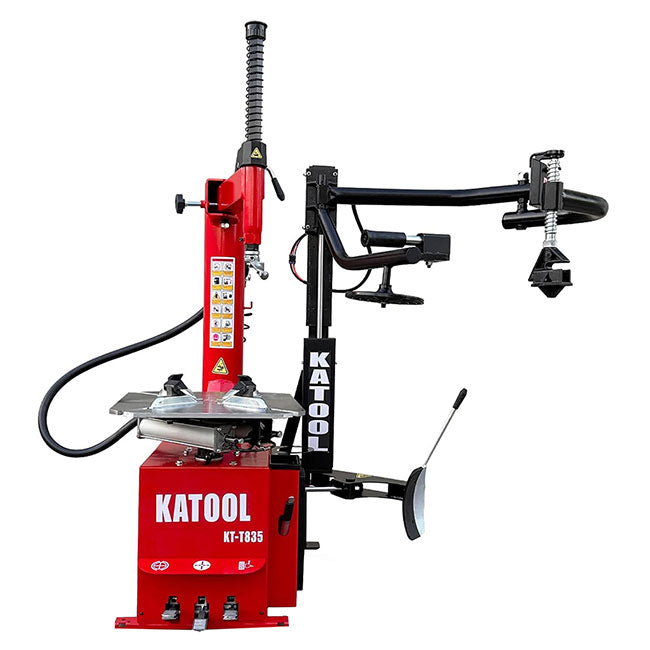

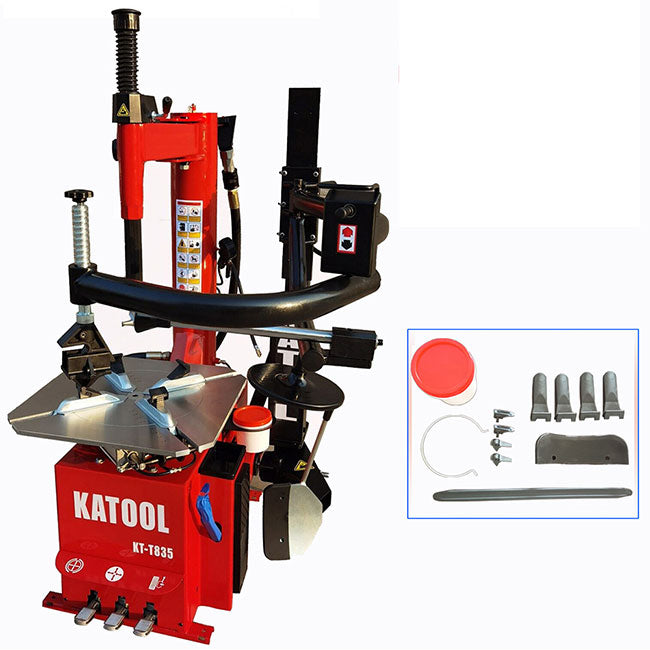

Katool KT-T835 - Swing Arm Tire Changer with One Assist Arm - 110V

KATOOL KT-T835 Single Assist Arm Tire Machine PN KT-T835 | Machine 12 in.-28 in. Rims

Model: KT-T835

The KATOOL KT-T835 Single Assist Arm Tire Machine is built for professional automotive repair shops, tire centers, and busy service garages that need dependable tire mounting and demounting performance. Designed for passenger vehicles and light trucks, the KT-T835 combines heavy-duty construction, user-friendly controls, and assist arm support to help technicians handle everyday tire service with confidence.

With a 41 in. / 1040mm maximum wheel diameter, 15 in. / 380mm maximum wheel width, 13 in. - 26 in. outside clamp range, and 14 in. - 28 in. inside clamp range, the KT-T835 provides a practical working range for many common shop tire service applications. The 110V 1PH / 60Hz power supply, 2.0HP motor, and 6.1 r/min rotation speed help deliver controlled, consistent operation.

Assist Arm Tire Changing Support

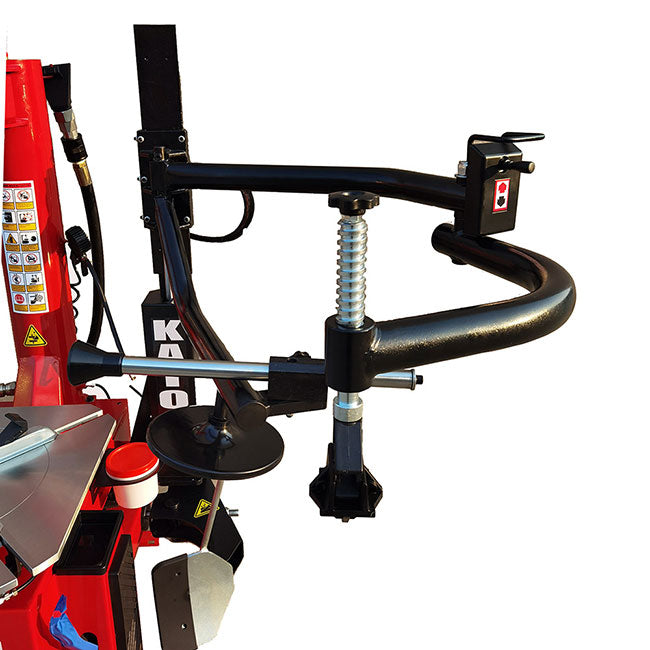

The single assist arm helps support more difficult tire applications, including low-profile tires and stiff sidewalls. The bead breaker system helps separate beads efficiently, while the bead blast seater with post tank assists with tire seating during service.

Durable Shop Construction

The KT-T835 features alloy steel jaws with carburization treatment, whole quenching process, and jaw covers to help protect rims. The stainless steel mounting head is designed for strength and smooth operation, while the closed body helps protect internal components during daily shop use.

Operator-Friendly Design

The KT-T835 includes an inflation gauge with pedal control, pull-type pedal control system for convenient operation and maintenance, and a high-quality air filter for reliable oil drop and pressure air filtration. The top-level motor uses pure copper winding for fast heat dissipation, low defect rate, and longer service life.

Key Features

• Single assist arm tire changer for passenger vehicles and light trucks
• Handles wheels up to 41 in. / 1040mm maximum diameter
• Handles wheels up to 15 in. / 380mm maximum width
• Outside clamp range: 12 in. - 24 in.
• Inside clamp range: 14 in. - 26 in.

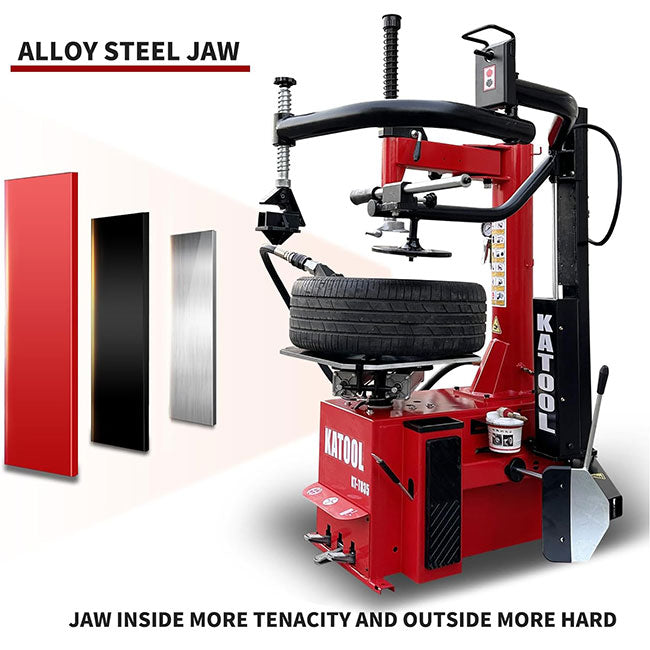

• Alloy steel jaws with carburization treatment and whole quenching process
• Jaw covers help protect rims during clamping

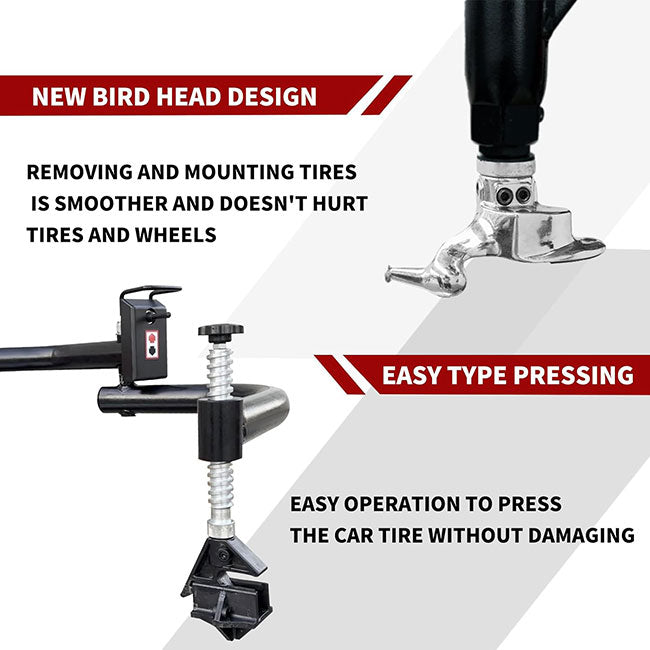

• Stainless steel mounting head
• Inflation gauge with pedal control
• High-quality spade cover helps prevent rim damage

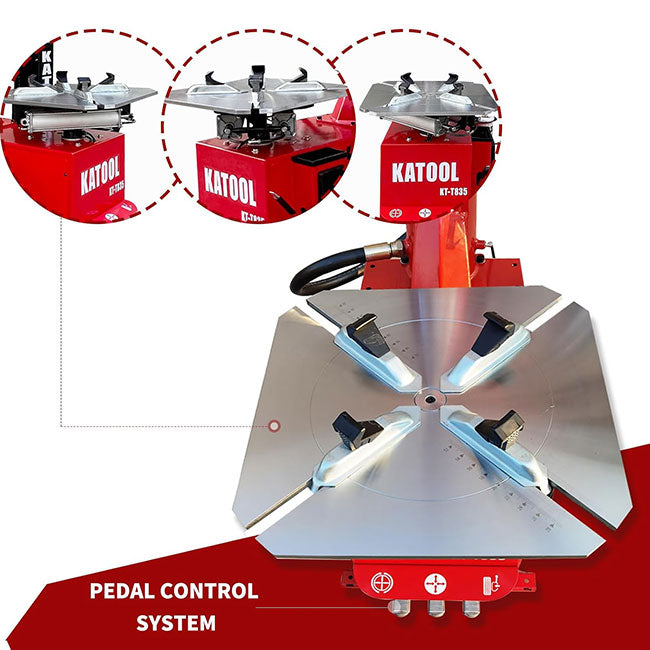

• Pull-type pedal control system for convenient operation and maintenance
• Top-level motor with pure copper winding for fast heat dissipation and longer service life
• High-quality filter provides reliable oil drop and effective pressure air filtration
• Bead blast seater with post tank
• 186mm stainless bead breaker cylinder
• Closed body helps protect internal parts
• 1-year manufacturer warranty, parts only, no labor
