KATOOL KT-T855 Vertical Tire Press Tire Changer

Katool Automotive Equipment KT-T855 Vertical Tire Press Tire Changer PN KT-T855

Model: KT-T855

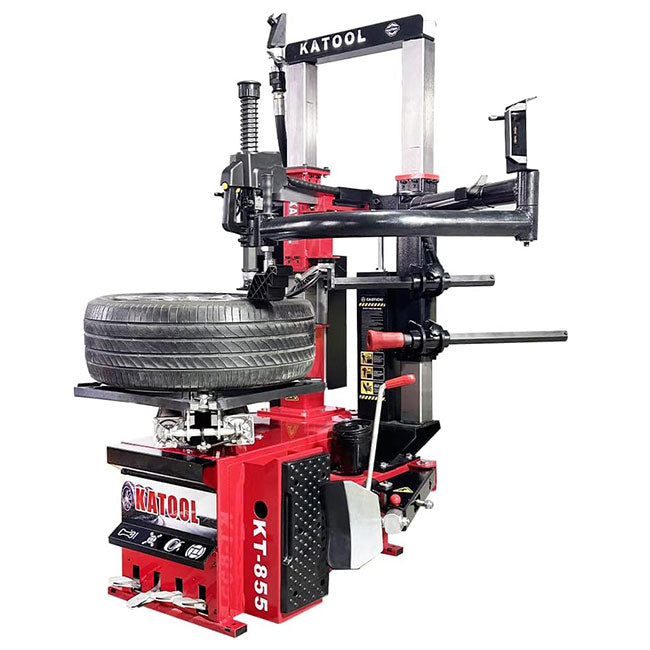

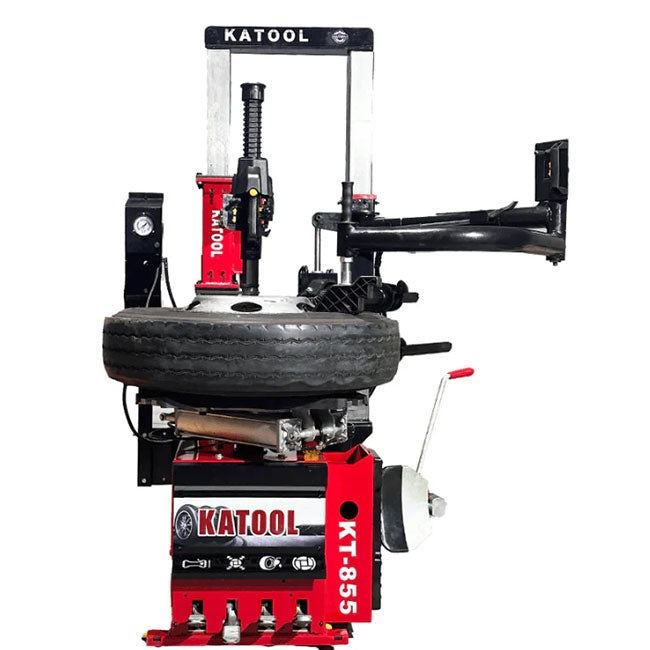

The Katool Automotive Equipment KT-T855 Vertical Tire Press Tire Changer is a high-performance tire service machine built for professional tire shops and service centers that regularly handle low-profile, run-flat, and stiff sidewall tires. Its vertical press design applies direct downward force for improved control during mounting and demounting compared to traditional swing-arm tire changers.

With 2,500 kg of tire press force, the KT-T855 helps technicians work through difficult tire applications with less effort and improved consistency. The machine supports passenger vehicle, SUV, and light truck tire service with a maximum tire diameter of 38.58 in. / 980mm, maximum tire width of 12.8 in. / 325mm, outer clamp range of 12 in. - 24 in., and inner clamp range of 14 in. - 28 in.

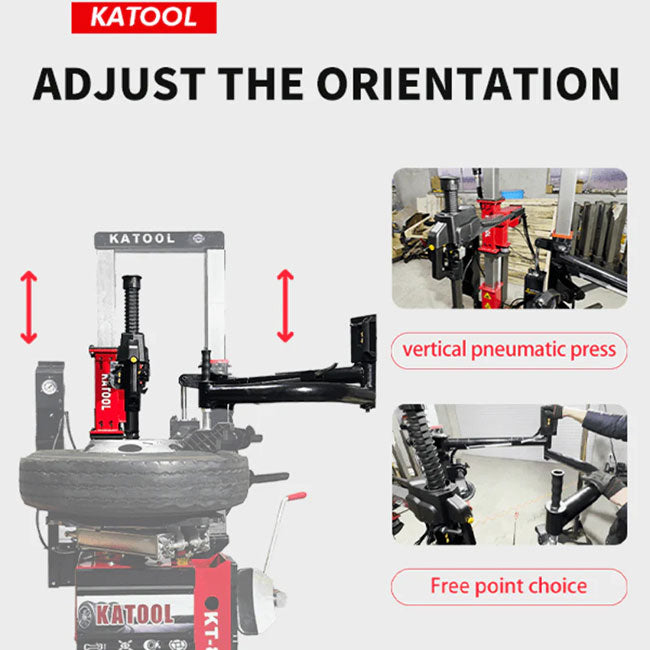

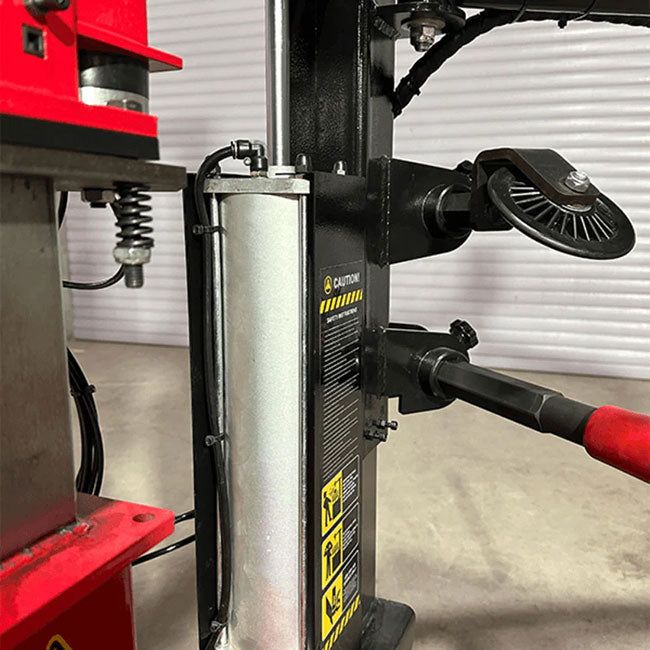

Vertical Press Tire Changing Support

The KT-T855 uses a vertical press design to help improve tire control, alignment, and service efficiency. The press system is especially useful for stiff sidewall tires, run-flat tires, and low-profile tire applications where extra control is needed during service.

Shop-Friendly Operation

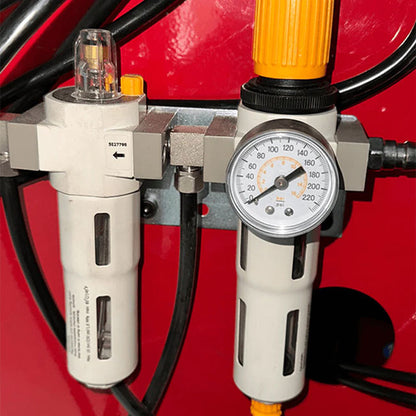

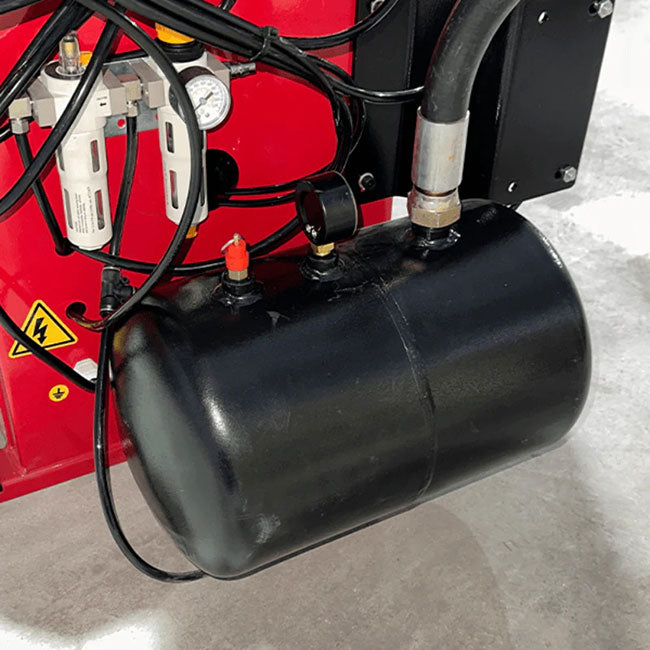

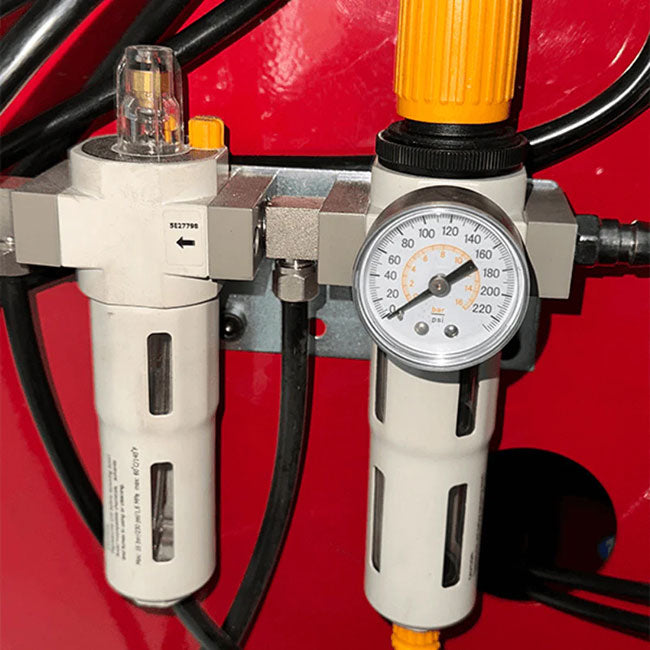

The KT-T855 operates on 110V / 60Hz power, making it easier to install in many shop environments without requiring specialized electrical upgrades. It requires an air pressure supply of 0.8 - 1.0MPa and uses a 1.5 kW motor with a full load current of 4.7A.

Durable Construction

Built with heavy-duty Q235 / Q245 steel construction, the KT-T855 is designed for long-term use in demanding tire service environments. Its vertical press design, wide clamping range, and durable frame make it a practical upgrade for shops looking to improve tire service capability and efficiency.

Key Features

• Vertical press design for improved control and service efficiency
• Designed for low-profile, run-flat, and stiff sidewall tires
• 2,500 kg tire press force for difficult tire applications

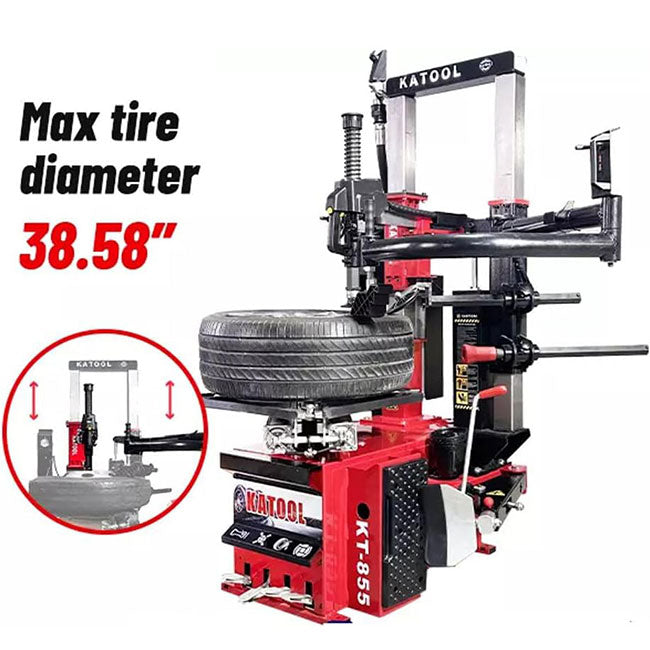

• Maximum tire diameter: 38.58 in. / 980mm
• Maximum tire width: 12.8 in. / 325mm
• Outer clamp range: 12 in. - 24 in.
• Inner clamp range: 14 in. - 28 in.

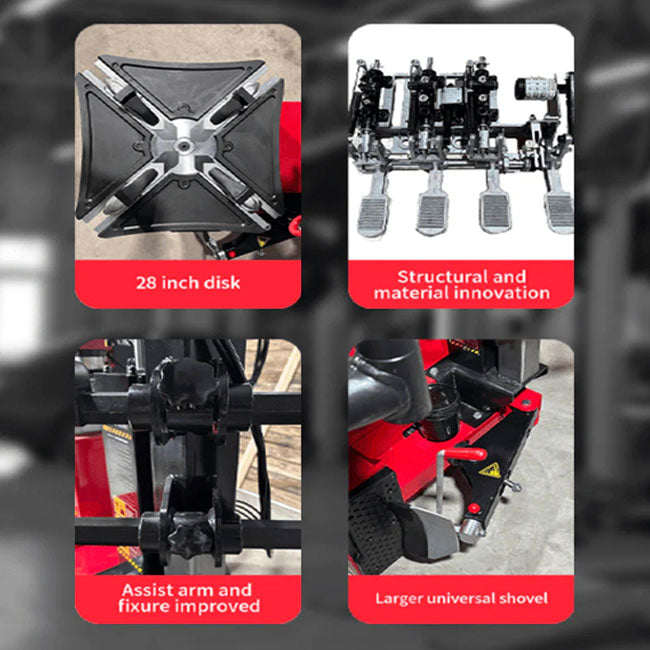

• Dual clamping system for a wide range of wheel sizes
• 110V / 60Hz power supply for easier shop installation

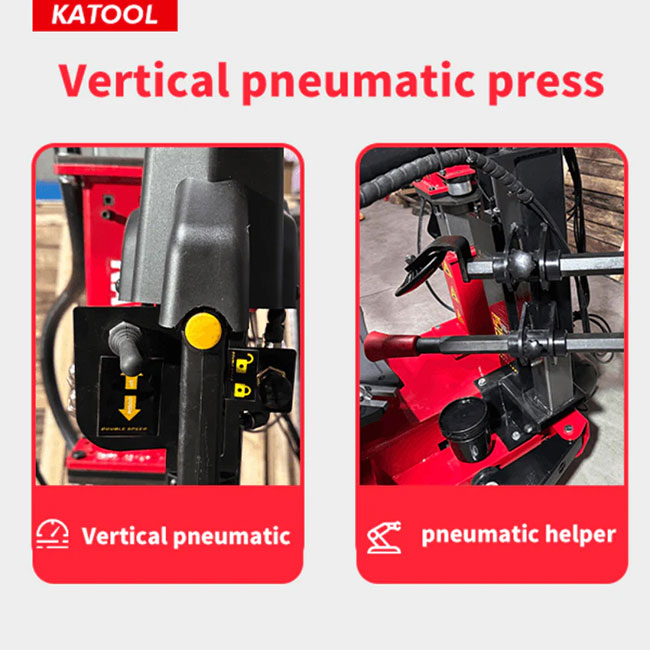

• Electro-pneumatic vertical press operation
• Low noise operation under 70 dB
• Heavy-duty Q235 / Q245 steel construction
• Suitable for passenger vehicles, SUVs, and light trucks
