TSI SG Upright Groover - Blade Housing Replacement Complete Kit
TSI SG Upright Groover - Blade Housing Replacement Complete Kit
Ships within (1 - 3 Business Days)
SKU: SG-Housing-Kit
Couldn't load pickup availability
Description
TSI SG Upright Groover - Blade Housing Replacement Complete Kit
Model: SG (Housing Kit)
The TSI Blade Housing Replacement Complete Kit is designed for restoring or rebuilding the blade assembly section of the TSI SG Upright Groover. This OEM replacement kit includes all major components required to maintain proper alignment, blade drive performance, and smooth handle operation. It replaces worn or damaged parts within the groover’s cutting head assembly, ensuring reliable precision when re-grooving tire tread patterns.

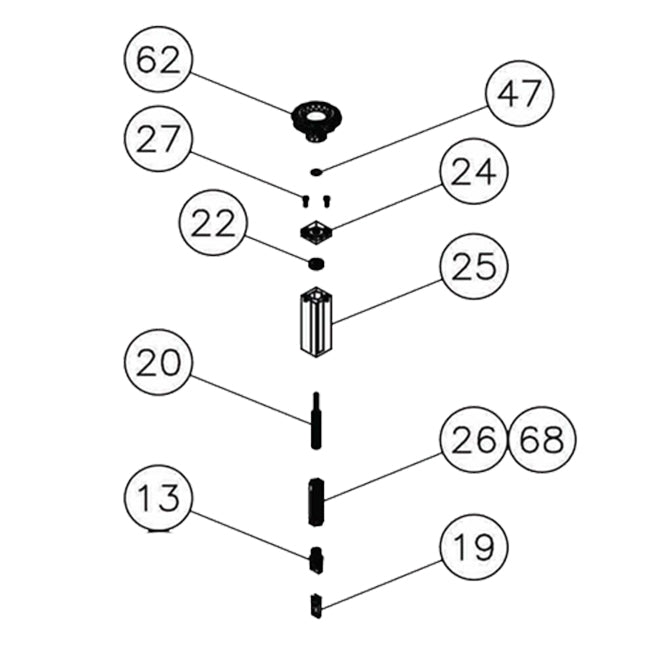

Kit includes:
- 13 – Blade Head – PN 23.264
- 62 – Handle, 5-Lobe (.43 bore) (6126005) – PN 11712
- 47 – Washer 5/16 – PN 1318
- 27 – SHCS 1/4-20 x 3/4 – PN 260.028
- 24 – Housing Cover – PN 131.098
- 22 – Bearing, Thrust – PN 99.107
- 25 – Housing Body – PN 168.190
- 20 – Bolt, 1/2-10 LH (SG) – PN 66.242
- 26 – Link Body – PN 172.190
- 68 – Pin, Spring 3/16 x 3/4 – PN 12473
- 13 – Blade Head – PN 23.264
This complete OEM service kit ensures factory fit and performance for all SG Upright Groovers. It is ideal for shop technicians performing rebuilds, preventive maintenance, or full housing replacements.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Compatible Model: TSI SG Upright Groover
- Includes: Blade head, handle, housing cover, thrust bearing, housing body, fasteners, and link body
- Construction: OEM steel and alloy components
- Purpose: Blade housing rebuild and replacement
- Manufacturer: Tire Service International (TSI)
