Tire Inspection

TSI TI-95 Tire Inspector

  • VENDOR:-   Tire Service International
  • SKU#   TSITI-95
In Stock
  • $5,798.97
    Unit price per

- +
Only -2 left!

Description

TSI TI-95 Tire Inspector | 14-17 x 7 1/8in = PN 9.410 Rim Included with Machine

Model Number: TI-95

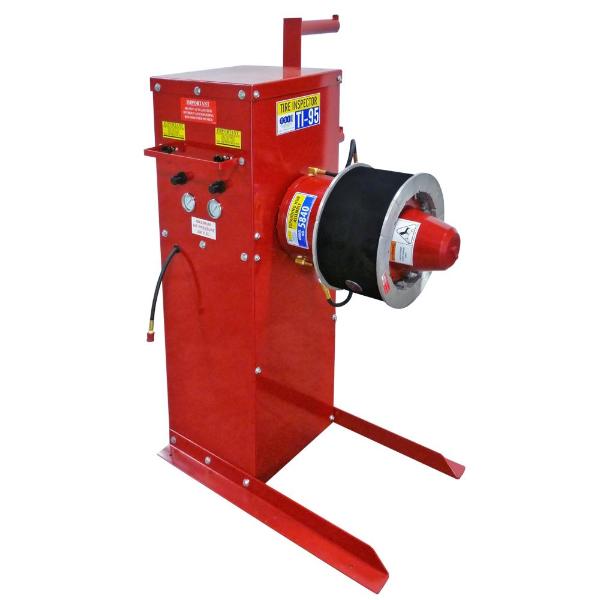

The TI-95 Tire Inspector is designed to inspect non mounted passenger car and light truck tires from 13” to 24.5” using an expandable hub and rim assembly. (Expanding rims sizes are Sold separately see size chart below).

The TI-95 Tire Inspector allows the operator to inspect tires for sidewall, tread and bead leakage on non mounted tires. Quick and easy inspection is accomplished by using an expandable hub and expandable rim assemblies.  The mounted tire and hub assembly rotate easily for quick and easy inspection and the convenient control panel is designed for ease of operation. The TI-95 has a rigid base and stand that supports all available rim sizes mounted on the hub assembly. A standard 1/4”, 90 PSI air line operates the unit and no electricity is required. We recommend the use of a good quality dual stage compressor for optimum results.

  • Includes the standard 14″ – 17″ expandable rim assembly
  • Other expandable rims are available to accommodate larger tire sizes (See Below for additional sizes)

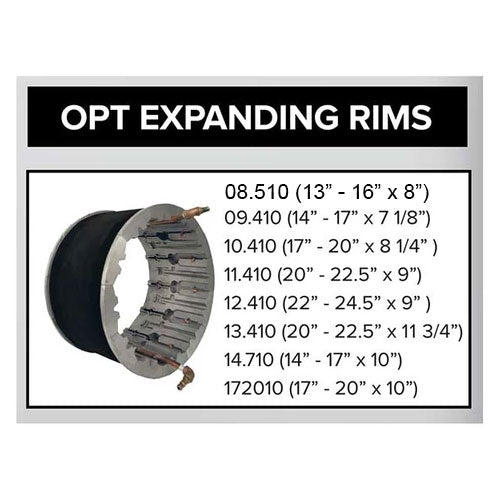

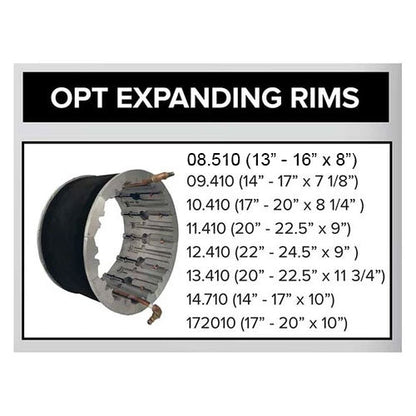

Additional Optional Expanding Rims: (Not Included):

  • 13-16 x 8in = PN 8.510
  • 17-20 x 8 1/4in = PN 10.410
  • 20-22.5 x 11 3/4in = PN 11.410
  • 22-24.5 x 9in = PN12.410
  • 20-22.5 x 11 3/4in = PN13.410
  • 14-17 x 10in Extra Wide = PN 14.710
  • 17-20 x 10in = PN 172010

  • TSI - Additional Optional Expanding Rims:
    WARNING: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

    Specifications

    • Easy 3 step system. Mount tire on expanding rim, open expand valve and open inflate valve.
    • Expanding rim assemblies accommodate 13” to 24.5” tires (Expanding Rims available separately).
    • Mounted tires rotate smoothly and easily on the heavy-duty 2” pillow block bearings.
    • The rugged stand and base includes a storage rack to store 3 different expanding rims.
    • No electricity required.
    • The machine has a heavy-duty rigid base and stand.
    • The stand supports the expanding hub along with all the hub pneumatic controls.
    • TI-095 has a storage rack to store 3 different sizes of expanding rims.
    • TI-095 is very quick to use – simply place the tire on the expanding rim – open the rim expand valve – then open the tire inflate valve & the tire is ready to rotate & test. (Inflates Tire to 30psi)
    • TI-095 – By using different size expanding rims (Purchase separately, see below) tire sizes from 13 inch through 24.5 inch can be inspected.
    • TI-095 – Tire and hub assembly rotates very easy on heavy-duty 2-inch pillow block bearings.

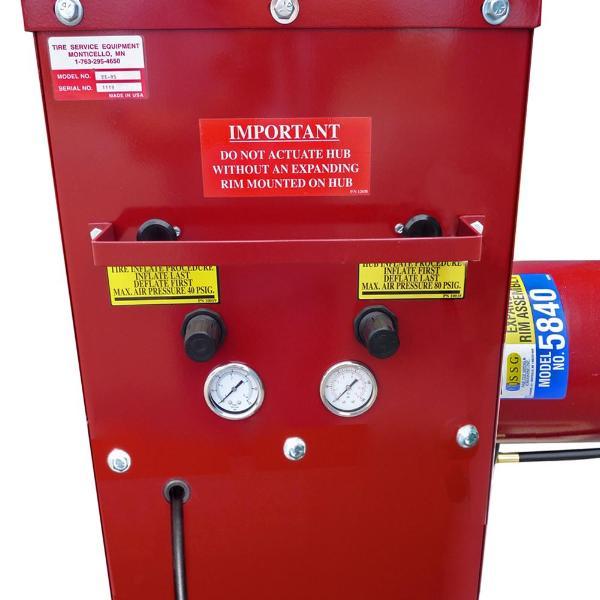

    • TI-095 –All pneumatic controls are located on the side console of machine for ease of operation.
    • Power requirements - 1/4 I.D. air hose w/90 PSIG (No electricity required).
    • Includes 9.410, 14"-17" Rim
    • WEIGHT 345 lbs
    • DIMENSIONS 40 x 36 x 62 in

    Shipping

    SHIPPING QUOTE

    This Item requires you to fill out a "SHIPPING QUOTE FORM", Please read instructions carefully and fill out all applicable questions. An email will be sent to us with your  items you intend to purchase and the shipping address. We will give you our best Freight rate to your "COMMERCIAL BUSINESS ADDRESS".

    Once we receive a quote from the carrier we will email you with a full break down of price for cost of items, Sales Tax and Shipping Cost. At this point if you are happy with the price you will be able to click on a link in the email and it will go straight to our secure site were you can check out securely. If for any reason you need assistance or have concerns that need to be addressed please don't hesitate to call us directly at 706-478-0072. We will be more than happy to assist you.

    Documents

    Operation Manual

    Product Brochure

    Parts & Assembly

    Expanding Rims Brochure
