Tire Inspection

TSI TI-96 Tire Inspector

  • VENDOR:-   Tire Service International
  • SKU#   TSITI-096
In Stock
  • $9,072.41
    Unit price per

- +
Only 0 left!




Important Shipping Information:-
• Orders received on Fridays after 11am EST will be processed the next business day
All orders shipped to a RESIDENTIAL ADDRESS will be subject to Additional charges from all carriers at this time.
What is LIMITED ACCESS - Commercial / Non-Commercial / Farms Click Here to Read More




Shipping Quote Form

If you Would Like a Shipping Quote before Purchasing, Please complete form below and click on "Submit Request". We will either call or send you a full Quote.

Description

TSI TI-96 Tire Inspector | 22-24.5in = PN 12.410 - Included with Machine

Model Number: TI-96

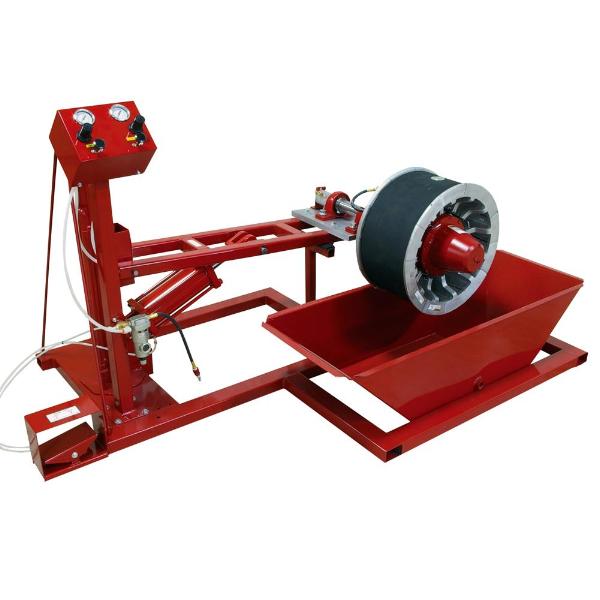

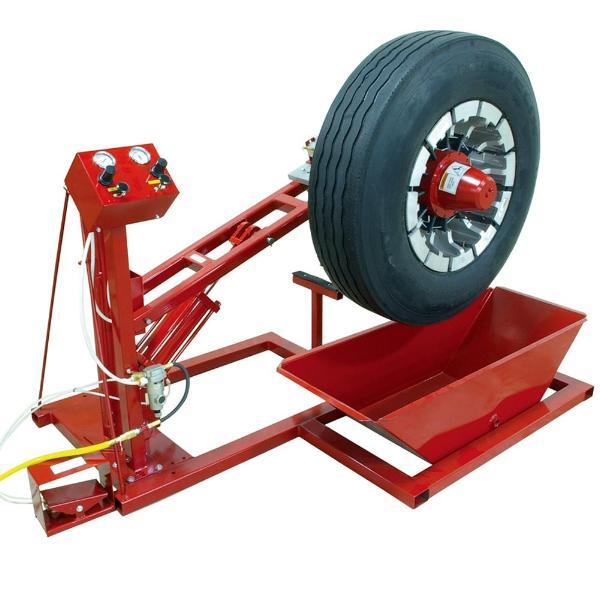

The TI-96 Tire Inspector is designed to inspect non mounted tires from 13” to 24.5” using an expandable hub and rim assembly. (Expanding rims sizes are Sold separately see size chart below).

The TI-96 Tire Inspector allows the operator to inspect tires for sidewall, tread and bead leakage using a dunk test tank.  A foot operated power lift will save time and injury by lifting those heavy tires from floor into the test tank. Quick and easy inspection is accomplished by using an expandable hub and expandable rim assemblies.  The TI-96 tire and hub assembly rotates easily for inspection and all operating controls are located on the side of the machine for easy operation. A standard 1/4”, 90 PSI air line operates the unit and no electricity is required.  We recommend the use of a good quality dual stage compressor for optimum results.

  • Includes the standard 22″ – 24.5″ expandable rim assembly
  • Other expandable rims are available to accommodate passenger and light truck tires

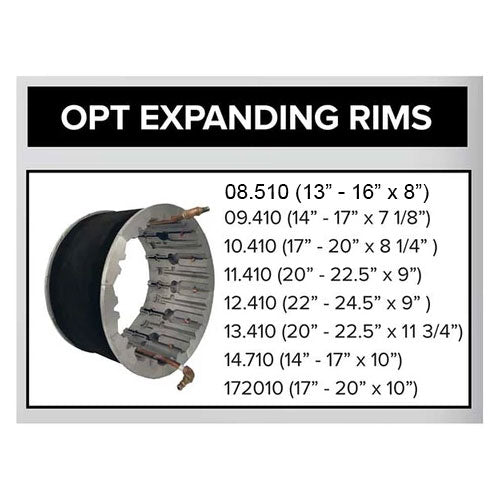

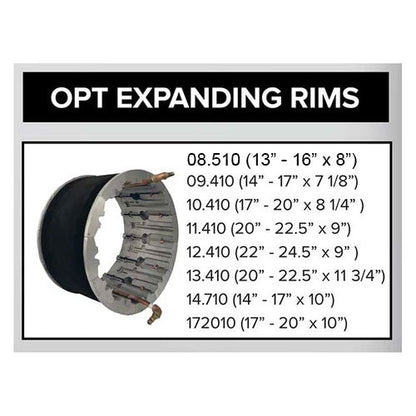

Additional Optional Expanding Rims: (Not Included):

  • 13-16 x 8in = PN 8.510
  • 14-17 x 7 1/8in = PN 9.410
  • 17-20 x 8 1/4in = PN 10.410
  • 20-22.5 x 11 3/4in = PN 11.410
  • 20-22.5 x 11 3/4in = PN13.410
  • 14-17 x 10in Extra Wide = PN 14.710
  • 17-20 x 10in = PN 172010  TSI - Additional Optional Expanding Rims:
  • Specifications

    WEIGHT 656 lbs
    DIMENSIONS 55 x 77 x 52 in
