Description

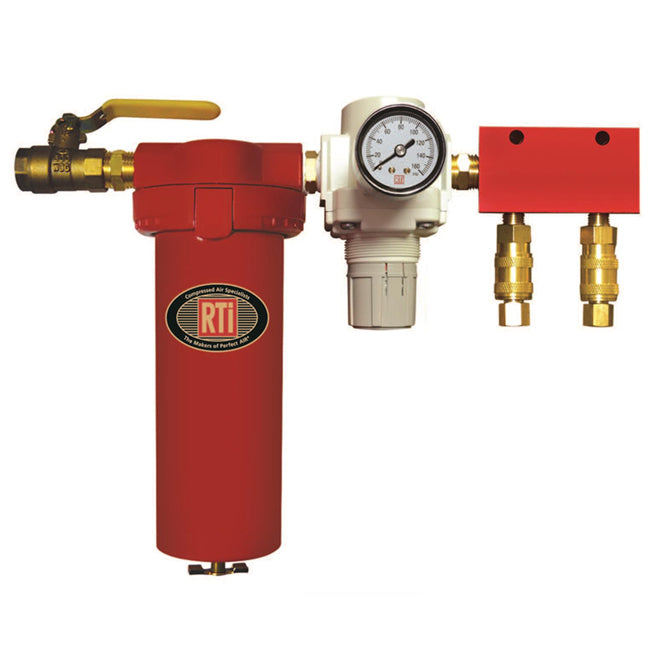

Reading Technologies STEALTH 1700B Coalescing Filter, 1/2 in. Inlet, 1/2 in. Regulator With Gauge, Multiport Manifold Outlet

Part Number: STEALTH 1700B

Reading Technologies STEALTH 1700B is a heavy-duty booth coalescing filter featuring a 1/2 in. regulator, multiport manifold outlet, and two HFMC-1 couplers. This high-efficiency filter delivers 0.01 micron filtration at 99.99998% efficiency and is designed for clean, oil-free compressed air in spray booth and industrial applications. Designed for easy installation with included mounting brackets and tool-free element service. Pressure gauge with glass lens and BV-051 ball valve included.

Perfect for paint booths and prep stations. Removes dirt, water, and oil. Patented "Inverse Flow" design. Activated carbon first stage removes oil to 0.003 ppm. Final filtration to 0.01 micron at 99.99998% efficiency. Includes manual petcock drain, regulator, and multiport manifold. Maximum flow: 60 SCFM. Maximum pressure: 200 PSI. Maximum temperature: 125°F.

Applications:

  • Paint Booths
  • Air Tools, Sand Blasting, Sanding Impacts, Buffing
  • Ideal for Mechanical Section of Shop

An extremely long element life and easy, tool-free servicing make Reading Technologies Stealth filters an optimum choice for your body shop and MADE in USA!

RTi STEALTH Model Comparison Chart

Model Inlet Size Regulator Type Gauge Type Notes
STEALTH 1000B 1/2 in. 1/2 in. standard regulator (dump-style) 0–160 PSI gauge Designed for Blue Pipe systems
STEALTH 1500B 1/2 in. 1/2 in. standard regulator 0–160 PSI gauge Includes multiport manifold & HFMC-1 couplers
STEALTH 1700B 1/2 in. 1/2 in. standard regulator 0–160 PSI gauge Multiport manifold outlet, couplers, BK-1, BV-051
STEALTH 1752B 1/2 in. 1/2 in. standard regulator Standard gauge Uses 6950-1 element
STEALTH 1762B 1/2 in. 1/2 in. dump-style regulator 0–160 PSI gauge Uses 6960-1 element
STEALTH 3050B 1/2 in. 3/8 in. high-flow regulator Oversized gauge With quick disconnects and multiport manifold
STEALTH 3060B 1/2 in. Standard regulator Standard gauge Compact, efficient dual-stage setup
STEALTH 3250B 1/2 in. 1/2 in. regulator Oversized 0–100 PSI gauge Includes MA500-4 manifold
STEALTH 6060B 1/2 in. 3/8 in. regulator Standard gauge Two-stage, includes carbon filtration
STEALTH 6062B 1/2 in. 3/8 in. regulator Standard gauge Compact dual tower design
STEALTH 6900B 1/2 in. 3/8 in. regulator Standard gauge Standard dual-stage filtering
STEALTH 6910B 1/2 in. 3/8 in. regulator Standard gauge High-capacity filtration
STEALTH 6950B 1/2 in. 1/4 in. regulator Standard gauge General-purpose shop use
STEALTH 6960B 1/2 in. 1/4 in. regulator Standard gauge Includes oil vapor filtration
STEALTH 7000B 1/2 in. 1/4 in. regulator Glass lens gauge Point-of-use compact design
STEALTH 7030B 1/2 in. 3/8 in. regulator Glass lens gauge Higher flow range with quick service access
STEALTH 7500 1/2 in. 3/8 in. regulator Standard gauge Multi-use dual tower filtration
STEALTH 7800B 1/2 in. 3/8 in. regulator Standard gauge Ultimate filtration system
