RTi STEALTH 6900B Coalescing Filter, 1/2 in. Inlet/Outlet
RTi STEALTH 6900B Coalescing Filter, 1/2 in. Inlet/Outlet
Ships within (1 - 3 Business Days)
SKU: STEALTH 6900B
Couldn't load pickup availability
Description

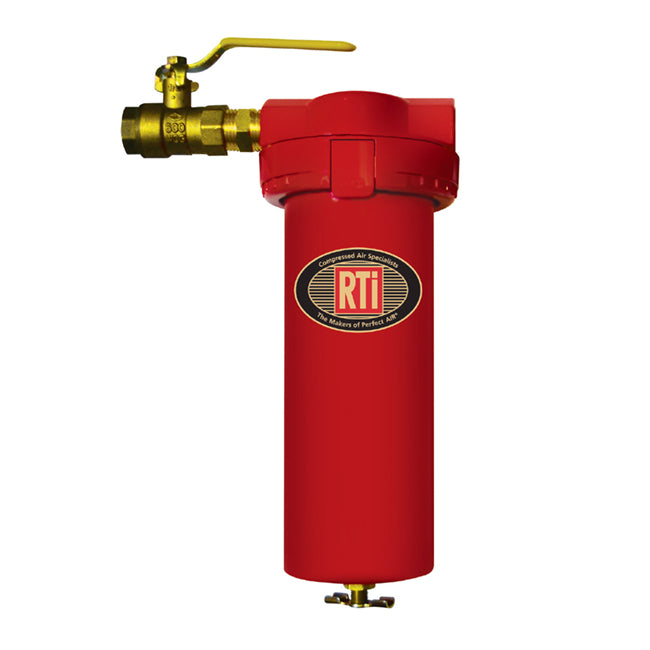

Reading Technologies STEALTH 6900B Coalescing Filter, 1/2 in. Inlet/Outlet
Part Number: STEALTH 6900B
The RTi STEALTH 6900B is a heavy-duty coalescing filter designed for inline air filtration in automotive and industrial shops. With a 1/2 in. NPT inlet and outlet, this unit features Inverse-Flow® Technology for enhanced filtration, along with a 3½ in. filter depth and 1.0 micron element. Its rugged construction includes a brass petcock manual drain, non-corrosive internal components, and a metal bowl built to last. Ideal for high-demand air applications requiring reliable particulate and oil contaminant removal.
Applications:
- Air Tools, Sand Blasting, Sanding Impacts, Buffing
- Ideal for Mechanical Section of Shop
An extremely long element life and easy, tool-free servicing make Reading Technologies Stealth filters an optimum choice for your body shop and MADE in USA!
RTi STEALTH Model Comparison Chart
| Model | Inlet Size | Regulator Type | Gauge Type | Notes |
|---|---|---|---|---|
| STEALTH 1000B | 1/2 in. | 1/2 in. standard regulator (dump-style) | 0–160 PSI gauge | Designed for Blue Pipe systems |
| STEALTH 1500B | 1/2 in. | 1/2 in. standard regulator | 0–160 PSI gauge | Includes multiport manifold & HFMC-1 couplers |
| STEALTH 1700B | 1/2 in. | 1/2 in. standard regulator | 0–160 PSI gauge | Multiport manifold outlet, couplers, BK-1, BV-051 |
| STEALTH 1752B | 1/2 in. | 1/2 in. standard regulator | Standard gauge | Uses 6950-1 element |
| STEALTH 1762B | 1/2 in. | 1/2 in. dump-style regulator | 0–160 PSI gauge | Uses 6960-1 element |
| STEALTH 3050B | 1/2 in. | 3/8 in. high-flow regulator | Oversized gauge | With quick disconnects and multiport manifold |
| STEALTH 3060B | 1/2 in. | Standard regulator | Standard gauge | Compact, efficient dual-stage setup |
| STEALTH 3250B | 1/2 in. | 1/2 in. regulator | Oversized 0–100 PSI gauge | Includes MA500-4 manifold |
| STEALTH 6060B | 1/2 in. | 3/8 in. regulator | Standard gauge | Two-stage, includes carbon filtration |
| STEALTH 6062B | 1/2 in. | 3/8 in. regulator | Standard gauge | Compact dual tower design |
| STEALTH 6900B | 1/2 in. | 3/8 in. regulator | Standard gauge | Standard dual-stage filtering |
| STEALTH 6910B | 1/2 in. | 3/8 in. regulator | Standard gauge | High-capacity filtration |
| STEALTH 6950B | 1/2 in. | 1/4 in. regulator | Standard gauge | General-purpose shop use |
| STEALTH 6960B | 1/2 in. | 1/4 in. regulator | Standard gauge | Includes oil vapor filtration |
| STEALTH 7000B | 1/2 in. | 1/4 in. regulator | Glass lens gauge | Point-of-use compact design |
| STEALTH 7030B | 1/2 in. | 3/8 in. regulator | Glass lens gauge | Higher flow range with quick service access |
| STEALTH 7500 | 1/2 in. | 3/8 in. regulator | Standard gauge | Multi-use dual tower filtration |
| STEALTH 7800B | 1/2 in. | 3/8 in. regulator | Standard gauge | Ultimate filtration system |
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Part Number: STEALTH 6900B
- Inlet/Outlet: 1/2 in. NPT (Female Threads)
- Filtration Efficiency: 1.0 micron
- Flow Capacity: Up to 60 SCFM @ 100 PSI
- Drain Type: Brass Manual Petcock
- Regulator: None (inline model)
- Construction: Heavy-Duty Metal Bowl, Non-Corrosive Internals
- Technology: Inverse-Flow® with 3½ in. Filter Depth
- Replacement Element: 6950-1
- Max Pressure: 200 PSIG
- Max Operating Temperature: 125°F
- Dimensional Shipping Weight: 4 lb
