RTi STEALTH 3060B Activated Carbon Filter, 1/2 in. Inlet, Regulated 3/8 in. Outlet With Gauge
RTi STEALTH 3060B Activated Carbon Filter, 1/2 in. Inlet, Regulated 3/8 in. Outlet With Gauge
BRAND: RTi
SKU: STEALTH 3060B
In Stock
Couldn't load pickup availability
Reading Technologies STEALTH 3060B Activated Carbon Filter, 1/2 in. Inlet, Regulated 3/8 in. Outlet With Gauge
Part Number: STEALTH 3060B

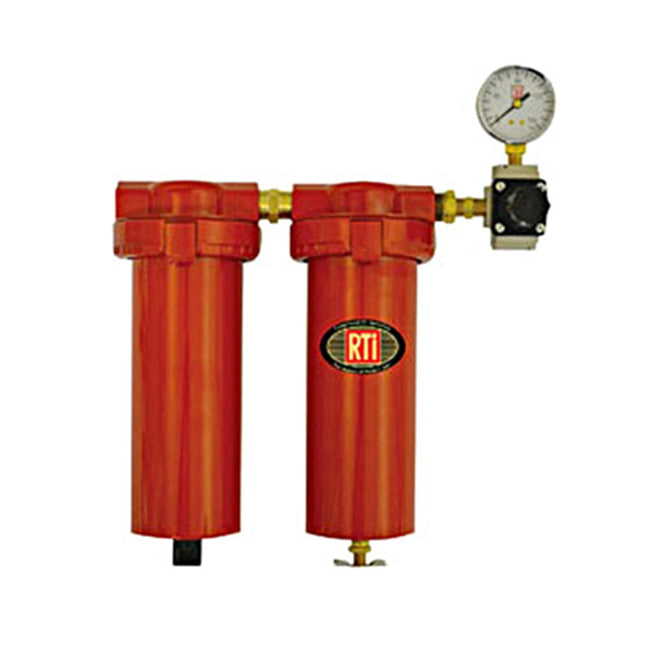

The RTi STEALTH 3060B is a compact, point-of-use activated carbon filter engineered to deliver clean, dry compressed air to your equipment. With a 1/2 in. NPT inlet and regulated 3/8 in. outlet, it features a built-in high-flow regulator and standard gauge, making it ideal for precise pressure control. Designed for shop environments requiring clean, oil- and moisture-free air, this unit includes a spin-on/off element and quick-disconnect clamp ring design for fast service. Its internal activated carbon filtration ensures oil vapor removal, supporting downstream systems and improving air quality for finishing applications.
Applications:
- Paint Booths
- Air Tools, Sand Blasting, Sanding Impacts, Buffing
- Ideal for Mechanical Section of Shop
An extremely long element life and easy, tool-free servicing make Reading Technologies Stealth filters an optimum choice for your body shop and MADE in USA!
RTi STEALTH Model Comparison Chart
| Model | Inlet Size | Regulator Type | Gauge Type | Notes |
|---|---|---|---|---|
| STEALTH 1000B | 1/2 in. | 1/2 in. standard regulator (dump-style) | 0–160 PSI gauge | Designed for Blue Pipe systems |
| STEALTH 1500B | 1/2 in. | 1/2 in. standard regulator | 0–160 PSI gauge | Includes multiport manifold & HFMC-1 couplers |
| STEALTH 1700B | 1/2 in. | 1/2 in. standard regulator | 0–160 PSI gauge | Multiport manifold outlet, couplers, BK-1, BV-051 |
| STEALTH 1752B | 1/2 in. | 1/2 in. standard regulator | Standard gauge | Uses 6950-1 element |
| STEALTH 1762B | 1/2 in. | 1/2 in. dump-style regulator | 0–160 PSI gauge | Uses 6960-1 element |
| STEALTH 3050B | 1/2 in. | 3/8 in. high-flow regulator | Oversized gauge | With quick disconnects and multiport manifold |
| STEALTH 3060B | 1/2 in. | Standard regulator | Standard gauge | Compact, efficient dual-stage setup |
| STEALTH 3250B | 1/2 in. | 1/2 in. regulator | Oversized 0–100 PSI gauge | Includes MA500-4 manifold |
| STEALTH 6060B | 1/2 in. | 3/8 in. regulator | Standard gauge | Two-stage, includes carbon filtration |
| STEALTH 6062B | 1/2 in. | 3/8 in. regulator | Standard gauge | Compact dual tower design |
| STEALTH 6900B | 1/2 in. | 3/8 in. regulator | Standard gauge | Standard dual-stage filtering |
| STEALTH 6910B | 1/2 in. | 3/8 in. regulator | Standard gauge | High-capacity filtration |
| STEALTH 6950B | 1/2 in. | 1/4 in. regulator | Standard gauge | General-purpose shop use |
| STEALTH 6960B | 1/2 in. | 1/4 in. regulator | Standard gauge | Includes oil vapor filtration |
| STEALTH 7000B | 1/2 in. | 1/4 in. regulator | Glass lens gauge | Point-of-use compact design |
| STEALTH 7030B | 1/2 in. | 3/8 in. regulator | Glass lens gauge | Higher flow range with quick service access |
| STEALTH 7500 | 1/2 in. | 3/8 in. regulator | Standard gauge | Multi-use dual tower filtration |
| STEALTH 7800B | 1/2 in. | 3/8 in. regulator | Standard gauge | Ultimate filtration system |
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Part Number: STEALTH 3060B
- Inlet Size: 1/2 in. NPT
- Outlet Size: 3/8 in. regulated
- Filter Type: Activated Carbon
- Final Filtration: 1.0 micron
- Regulator: High-flow type with standard gauge
- Max. Flow Capacity: 60 SCFM
- Drain Type: Brass petcock manual drain
- Construction: Heavy-duty metal bowl
- Design: Quick clamp ring with spin-on/spin-off element
- Max. Operating Pressure: 150 PSI
- Max. Operating Temperature: 125°F
- Dimensional Shipping Weight: 4 lb
