Description

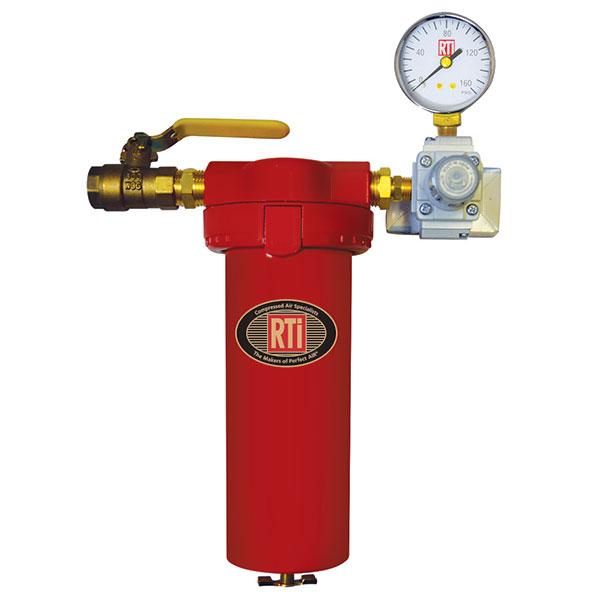

Reading Technologies STEALTH 7000B Coalescing Filter, 1/2 in. Inlet, Regulated 1/4 in. Outlet With Gauge 1/4 in. Regulator

Part Number: STEALTH 7000B

For small, low-volume restoration and home shops! 4-stage desiccant design filters down to 1 micron. Provides oil- and moisture-free air to your tools, paint guns, or air cylinders—ideal for plasma cutters. Quick-change element design requires no tools. Install at point of use.

Features:

  • Great final polishing filter and control unit
  • Quick disconnect clamp ring design
  • 0.01 micron @ 99.99998% efficiency
  • Spin-on/spin-off element
  • Brass petcock manual drain
  • High flow regulator with 0–160 PSI glass lens gauge
  • 1/4 in. outlet on STEALTH 7000B
  • 3/8 in. outlet on STEALTH 7030

Benefits:

  • Cleaner compressed air with no oil to your applications
  • Simple design requires no tools for maintenance
  • Easy service of elements
  • Extremely long element life
  • 99.99998% effective at oil removal

Perfect for paint booths and prep stations. Removes dirt, water, and oil. Patented Inverse Flow design. Patented activated carbon first stage removes oil to 0.003 ppm. Second stage final filtration to 0.01 micron at 99.99998% efficiency. Automatic drain on first stage, manual petcock drain on second stage. Pressure regulator and gauge standard. Maximum flow up to 60 SCFM. Maximum inlet air pressure: 200 PSI. Maximum operating temperature: 125°F.

An extremely long element life and easy, tool-free servicing make Reading Technologies Stealth filters an optimum choice for your body shop and MADE in USA!

RTi STEALTH Model Comparison Chart

Model Inlet Size Regulator Type Gauge Type Notes
STEALTH 1000B 1/2 in. 1/2 in. standard regulator (dump-style) 0–160 PSI gauge Designed for Blue Pipe systems
STEALTH 1500B 1/2 in. 1/2 in. standard regulator 0–160 PSI gauge Includes multiport manifold & HFMC-1 couplers
STEALTH 1700B 1/2 in. 1/2 in. standard regulator 0–160 PSI gauge Multiport manifold outlet, couplers, BK-1, BV-051
STEALTH 1752B 1/2 in. 1/2 in. standard regulator Standard gauge Uses 6950-1 element
STEALTH 1762B 1/2 in. 1/2 in. dump-style regulator 0–160 PSI gauge Uses 6960-1 element
STEALTH 3050B 1/2 in. 3/8 in. high-flow regulator Oversized gauge With quick disconnects and multiport manifold
STEALTH 3060B 1/2 in. Standard regulator Standard gauge Compact, efficient dual-stage setup
STEALTH 3250B 1/2 in. 1/2 in. regulator Oversized 0–100 PSI gauge Includes MA500-4 manifold
STEALTH 6060B 1/2 in. 3/8 in. regulator Standard gauge Two-stage, includes carbon filtration
STEALTH 6062B 1/2 in. 3/8 in. regulator Standard gauge Compact dual tower design
STEALTH 6900B 1/2 in. 3/8 in. regulator Standard gauge Standard dual-stage filtering
STEALTH 6910B 1/2 in. 3/8 in. regulator Standard gauge High-capacity filtration
STEALTH 6950B 1/2 in. 1/4 in. regulator Standard gauge General-purpose shop use
STEALTH 6960B 1/2 in. 1/4 in. regulator Standard gauge Includes oil vapor filtration
STEALTH 7000B 1/2 in. 1/4 in. regulator Glass lens gauge Point-of-use compact design
STEALTH 7030B 1/2 in. 3/8 in. regulator Glass lens gauge Higher flow range with quick service access
STEALTH 7500 1/2 in. 3/8 in. regulator Standard gauge Multi-use dual tower filtration
STEALTH 7800B 1/2 in. 3/8 in. regulator Standard gauge Ultimate filtration system
